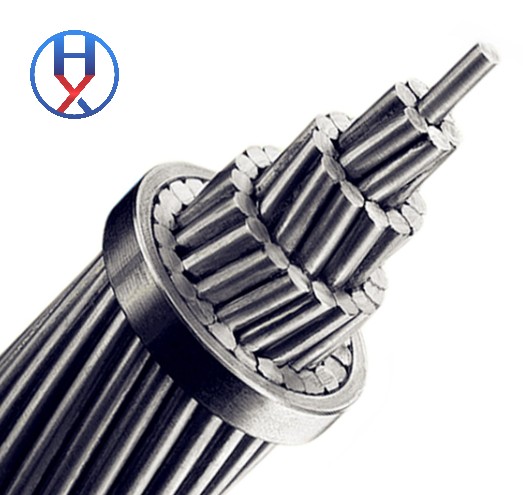

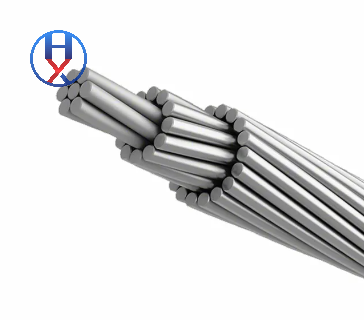

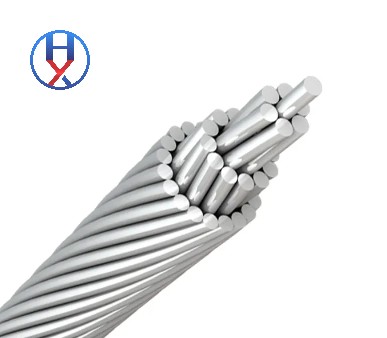

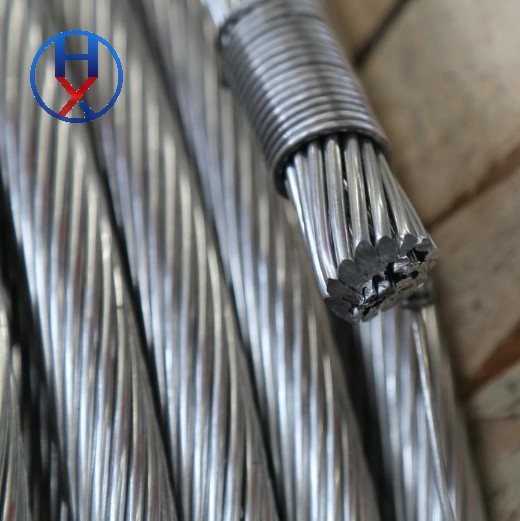

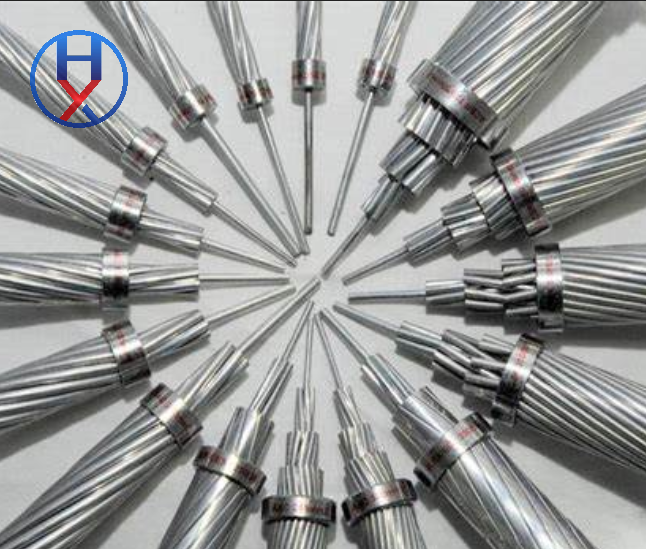

steel core aluminum stranded wire, English name: aluminum conductor steel reinforced, ACSR, refers to single or multi-layer aluminum strand wire stranded outside galvanized steel core wire. Mainly used in power and transmission line industry.

Product structure features:

Steel core aluminum stranded wire has the characteristics of simple structure, convenient erection and maintenance, low line cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys. It has good electrical conductivity and sufficient mechanical strength. Tensile strength It has the characteristics of high strength, and the distance between towers can be enlarged, so this product is widely used in overhead transmission and distribution lines of various voltage levels.

Product Instructions for Use:

Operating temperature: the maximum long-term operating temperature of the cable conductor is 90°C
Short-circuit temperature: the maximum temperature of the cable conductor does not exceed 250 ℃ during short-circuit (the longest duration does not exceed 5s)
Laying temperature: the ambient temperature when laying the cable should not be lower than 0 ℃
Bending radius: the bending radius of single-core cable is not less than 15 times the outer diameter of the cable, and the bending radius of multi-core cable is not less than 10 times the outer diameter of the cable
Scope of application: It can be laid indoors, in tunnels, cable trenches and pipes, and can also be buried in loose soil. The cable can withstand certain laying traction, but cannot withstand mechanical external force.
