Surface Treatment

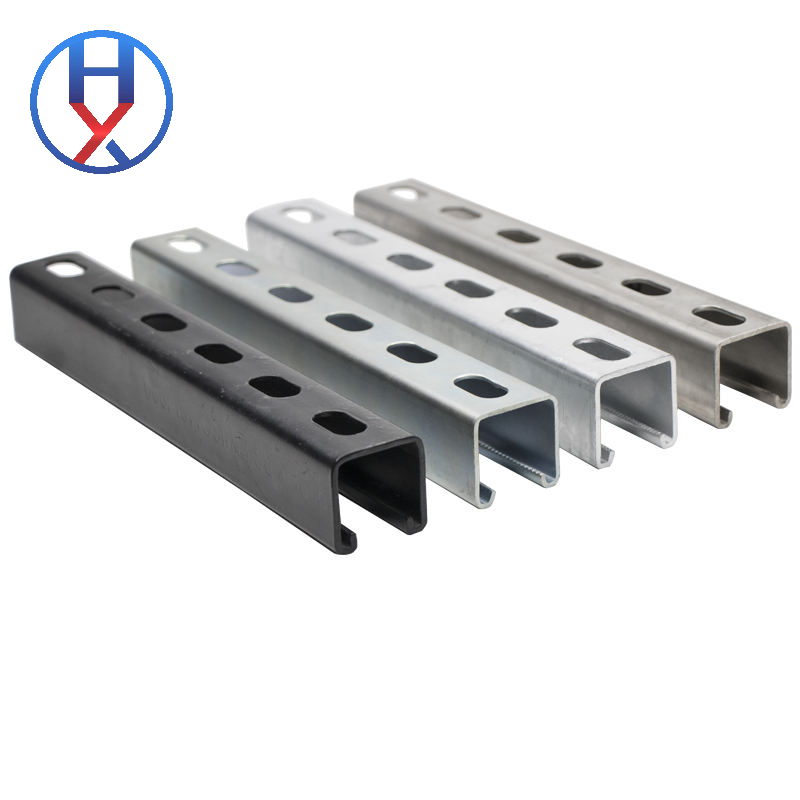

GI,HDG(Hot Dipped Dalvanized ),powder coating (Black,Green,White,Grey,Blue)etc.

Lengths

Either 10FT or 20FT

or cut into the length according to Customer's Requirements

Thickness

1.0mm,,1.2mm1.5mm, 1.8mm,2.0mm, 2.3mm,2.5mm

Holes

12*30mm/41*28mm or according to Customer's Requirements

Style

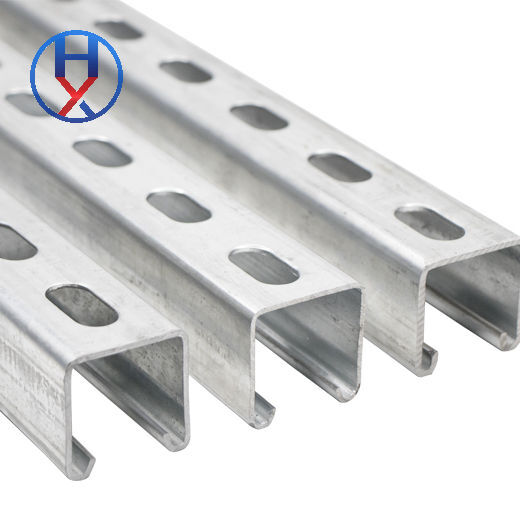

Plain or Slotted or back to back

Type

(1)Tapered Flange Channel (2)Parallel Flange Channel

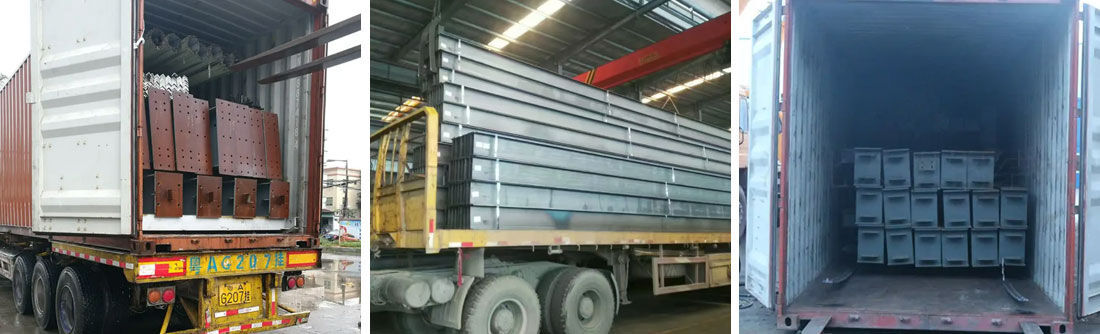

Packaging

Standard Seaworthy Package:In Bundles and fasten with steel strips

or  packed with braided tape outside

No.

Size

Thickness

Type

Surface

mm

inch

mm

Gauge

Treatment

A

41x21

1-5/8x13/16"

1.0,1.2,1.5,2.0,2.5

20,19,17,14,13

Slotted, Solid

GI,HDG,PC

B

41x25

1-5/8x1"

1.0,1.2,1.5,2.0,2.5

20,19,17,14,13

Slotted, Solid

GI,HDG,PC

C

41x41

1-5/8x1-5/8"

1.0,1.2,1.5,2.0,2.5

20,19,17,14,13

Slotted, Solid

GI,HDG,PC

D

41x62

1-5/8x2-7/16"

1.0,1.2,1.5,2.0,2.5

20,19,17,14,13

Slotted, Solid

GI,HDG,PC

E

41x82

1-5/8x3-1/4"

1.0,1.2,1.5,2.0,2.5

20,19,17,14,13

Slotted, Solid

GI,HDG,PC
